MG-7

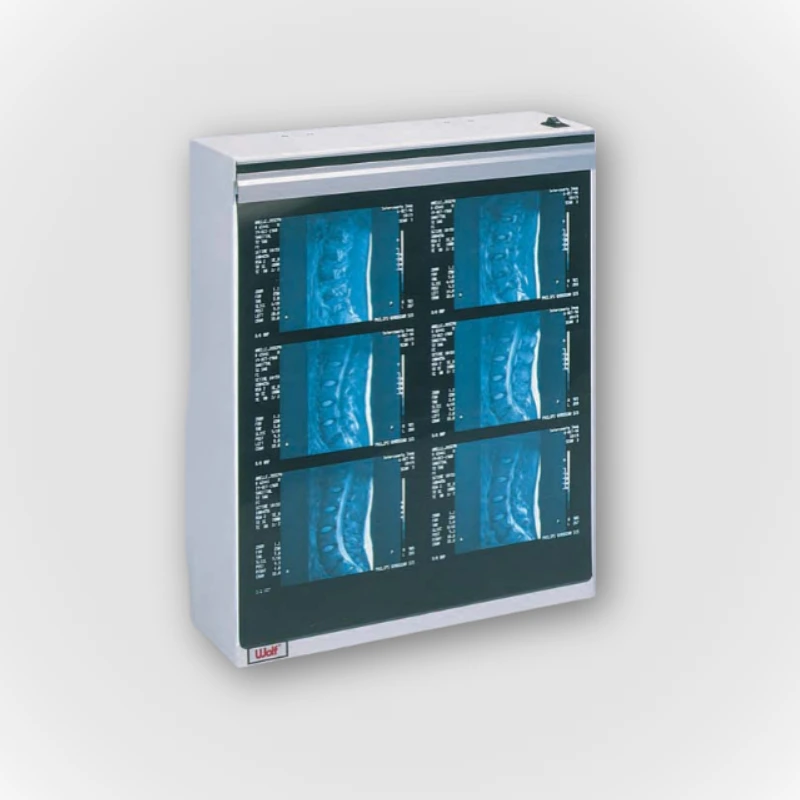

The Wolf MG-7 Illuminator is a durable, versatile X-ray viewbox designed for private practitioners. It features a 5-inch depth, making it suitable for both wall mounting and desktop use. Equipped with two 15-watt fluorescent lamps per 14″ x 17″ viewing area, it delivers 2,200 candela per square meter. Standard features include a magic grip film retainer, a 6-foot cord with a 3-prong plug, and a white baked enamel finish. Optional handle kits are available for single and double units. Note: The MG-7 cannot be recessed-mounted.

Category: Illuminators Tag: MG 7

Add to Quote

Description

MG-7 Illuminator Specifications

Model No.	Configuration	Viewing Area (inches)	Dimensions (H x W x D)	Weight (lbs)	Notes
21104	Single Bank	14 x 17	18⅛ x 14⅛ x 5	13	Optional handle available
21801	2 Bank	28 x 17	18⅛ x 28¼ x 5	29	Optional handle available
21802	3 Bank	42 x 17	18⅛ x 42⅜ x 5	49
21803	4 Bank	56 x 17	18⅛ x 56½ x 5	60

Each unit includes two 15-watt fluorescent lamps per viewing area, delivering 2,200 candela per square meter. The MG-7 is designed for wall mounting or desktop use and is not suitable for recessed installation.
